EC-EC Simplex Fiber Optic Patch cord UPC SM PVC/LSZH/TPU

Name: ECEC Simplex Fiber Optic Patch cord UPC SM PVCLSZHTPU
Brand: DF/OEM/Nuetral
Price: 1 USD

Return Loss : UPC SM ≥50dB 、APC SM ≥ 60dB 、UPC MM ≥ 35dB

Certificate : CE/ROHS/REACH

Cable Diameter : 2.0、3.0 or customized (Simplex/duplex)

Operation Temperature : -20℃~70℃

Fiber Diameter : 50/125

Product Name : EC-EC Simplex Patch cord

Fiber Type : SM (G652、G655、G657); MM (OM1-OM5)

Color : Blue or others

Cable Material : Stainless steel tube, PVC/LSZH

Jacket Material : PVC、LSZH、TPU

Brand Name : DF/OEM/Nuetral

Model Number : EC-EC Simplex Patch cord

Certification : CE/ROHS/REACH/ISO9001/ISO14001

Place of Origin : China, Shenzhen

MOQ : negotiable

Price : negotiable denpend on QTY

Payment Terms : Western Union,T/T,/Paypal

Supply Ability : 1000PCS/Day

Delivery Time : 5-9 working days depends on QTY

Packaging Details : Blister box+Carton

Tensile Strength : >70N

Intertion Loss : ≤0.3dB

Grade : Telecom Grade

Bend Radius : 10D/20D

Contact Now

EC-EC Simplex Fiber Optic Patch cord UPC SM PVC/LSZH/TPU

EC-EC Simplex Patchcord Describe:

EC-EC Simplex Patch cord is the cable with both ends terminated with two fiber optic EC connectors, which realizes the connection between optic networking equipment and equipment, and equipment and patch cords. Easy operation and convenience make it indispensable as one of the passive products for optic networking construction.

EC-EC Simplex Patchcord Application:

CATV
Telecommunication network
Active device termination
Local area networks(LANS)
Data processing networks
Test equipment
Wide area networks(WANS)

EC-EC Simplex Patchcord Features:

Connector type SC, LC, FC, ST, E2000 etc. is optional
Good exchange ability
Good durability
High temperature stability
Standard:Telcordia GR-326-CORE

EC-EC Simplex Patchcord Parameter:

End face type	UPC and APC
Fiber type	SM(G652 / G655 / G657)；MM(OM1-OM5)
Cable Diameter	2.0/3.0mm or customized
Insertion loss	≤ 0.3 dB
Return loss	UPC SM≥50dB, APC SM≥ 60 dB, PC MM ≥ 35 dB
Repeatability	≤ 0.1
Durability	≤ 0.2dB
Interchangeability	≤ 0.2dB
Tensile strength	0.9mm cable>5N；2.0/3.0mm cable>70N
Operating Temperature	-20℃~70℃
Storage Temperature	-40℃~80℃
Outer Sheath Material	PVC/LSZH or Customized
Bending radius(Static/Dynamic)	10D/20D
Length	Customized

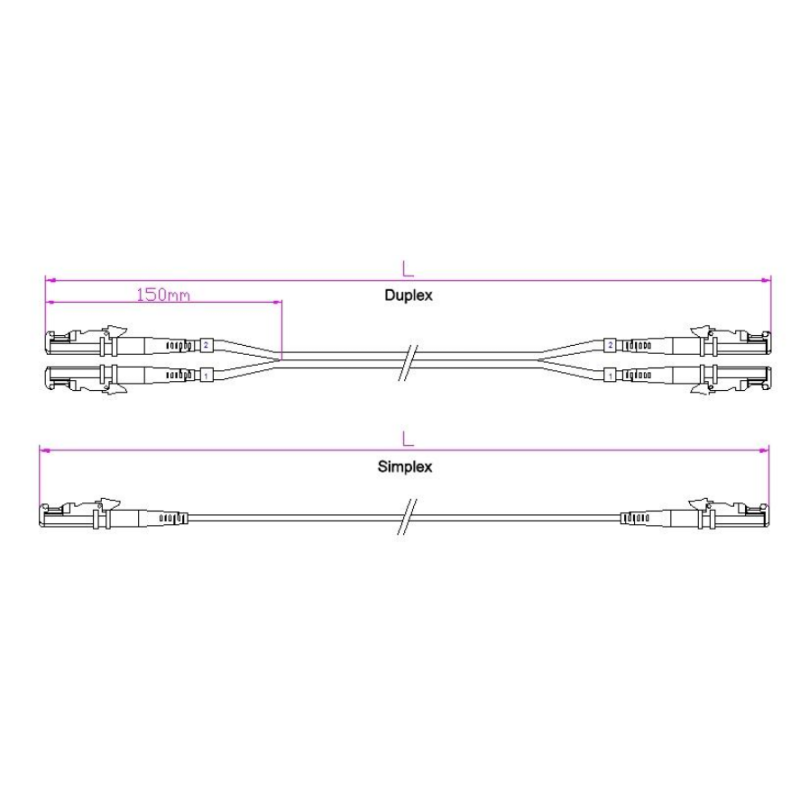

EC-EC Simplex Patchcord Picture

EC-EC Simplex Fiber Optic Patch cord UPC SM PVC/LSZH/TPU

Why choose TAKFLY - Advantages as follows:

Professional manufacturer:

With more than 25 years manufacturing experience in Fiber optic products;
More than 500 assembly workers with 5 years experienced;
More than 10 R & D Engineers;
16 Sets Germany imported Injection Machine and 16 Production Lines;
More than 30 sets of Testing Machines: OTDR, 3D, VFL, IL & RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
OEM Brand is acceptable.
Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.

Quality Control:

Spot check the raw material incoming inspection before production;
Fully check after every individual process finished;
Fully check production half done;
Fully check the finished products before packing;
Spot check before shipping;

Delivery:

Samples: 1-3 working days.
Mass Production Order: 3-7 working days.
Packaging: Plastic Bag, Carton and Pallet are available according to your request.

If you're interested in our products or have any doubt, feel free to contact me at any time!

Quality EC-EC Simplex Fiber Optic Patch cord UPC SM PVC/LSZH/TPU for sale

EC-EC Simplex Fiber Optic Patch cord UPC SM PVC/LSZH/TPU Images
